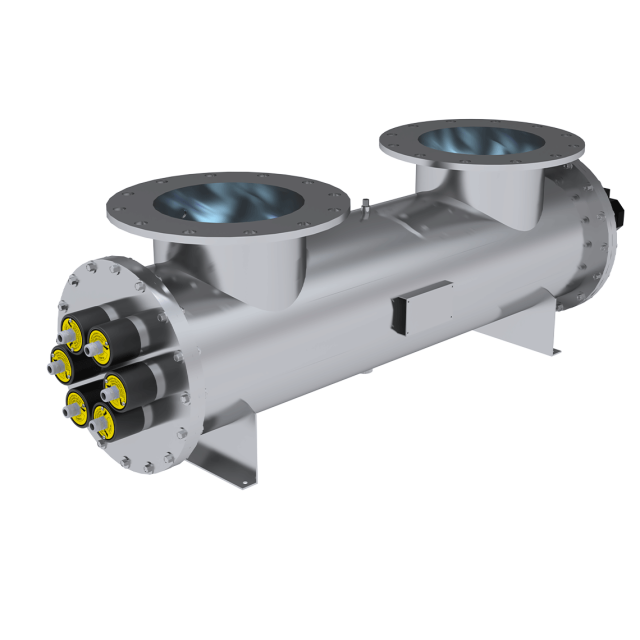

triogen® SMP

The triogen® SMP range has been designed to treat medium-quality seawater (50-98 % UVT). Its electropolished stainless-steel reactor and medium-pressure lamps allow it to operate in cold, temperate, or very hot applications.

traitement de l'eau uv smp

Benefits +

  • Water safety: effective control of overall bacteria levels
  • Improved quality: significantly improved water clarity and air quality
  • Ease of use and maintenance: intuitive and easy to maintain system
  • Algae prevention: helps to limit algae growth
  • Sustainable savings: reduces water, energy and chemical consumption
  • Optimised installation: low cost, minimal space requirements
  • Precise monitoring: integrated UV sensor for continuous monitoring

Technical data

ModelMax. flowrate*

Delivered UV doses at indicated UVT / Flow rate**

UV lamp powerConnectionReactor length
SMP100
75-1/1.5
29 m3/h30 mJ/cm21 x 1.5 kWDN65 mm1330 mm
SMP150
100-1/1.5
49 m3/h30 mJ/cm21 x 1.5 kWDN100 mm1330 mm
SMP150
100-1/3
99 m3/h30 mJ/cm21 x 3 kWDN100 mm1330 mm
SMP250
150-1/3
163 m3/h30 mJ/cm21 x 3 kWDN150 mm1330 mm
SMP200
150-2/3
237 m3/h30 mJ/cm22 x 3 kWDN150 mm1330 mm
SMP250
200-1/6
324 m3/h30 mJ/cm21 x 6 kWDN200 mm1680 mm
SMP250
200-3/3
435 m3/h30 mJ/cm23 x 3 kWDN200 mm 1330 mm
SMP300
250-2/6
671 m3/h30 mJ/cm22 x 6 kWDN250 mm 1680 mm
SMP400
350-3/6
1217 m3/h30 mJ/cm23 x 6 kWDN250 mm 1680 mm
*For different flow rates, contact us.
**The performance of these devices was calculated at the lamp end-of-life and with 95% transmittance
