Electrical cabinets
Control and protection of pool equipment
Essential to any installation, the electrical box provides centralised and secure management of equipment: filtration, lighting, heating, water treatment, etc. It enables efficient automation of pool operation while ensuring compliance with safety standards. Easy to install, it is the ideal solution for optimising pool performance while simplifying maintenance.

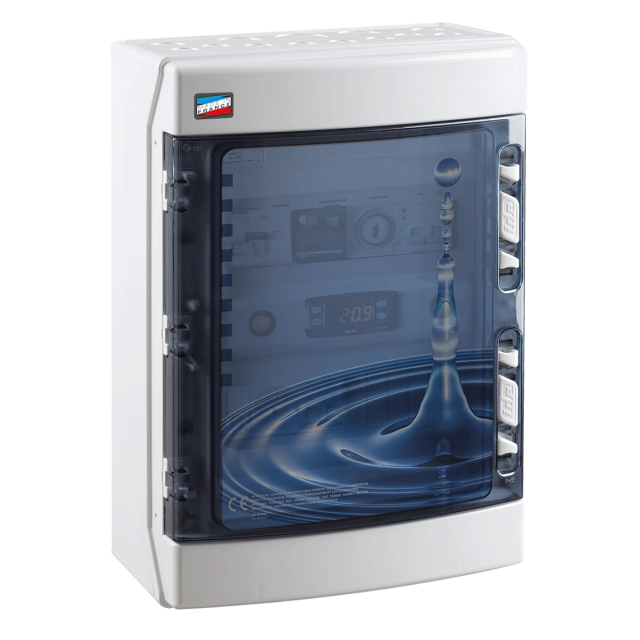

Klaar Pro
- Residual current device
220 V socket not controlled - Motor protection by magneto-thermal circuit breaker (2.5/4 – 4/6.3 – 6.3/10)
- Motor contactor
- Programmable daily time clock in 30-minute increments
- Two 230 V controlled outlets (treatment)
- A water or air frost sensor with digital temperature display
- One 230 V LED remote control
- 3-position switch (filtration)
- 2-position light switch (spotlight)
- Transformer (100 W, 300 W or 600 W) to match spotlight(s)
- Earth terminal block
- Option: Heat pump output
- Dimensions: 436 x 310 x 147 (mm)

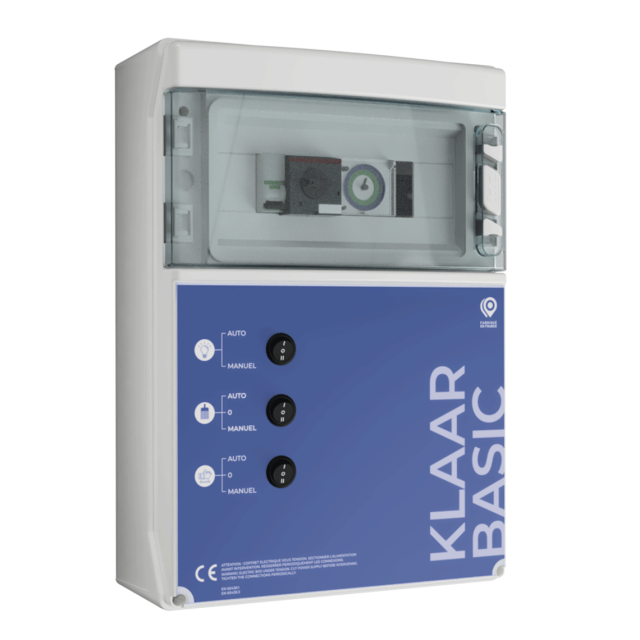

Klaar Basic
- Motor protection by magneto-thermal circuit breaker (2.5/4 – 4/6.3 – 6.3/10)
- Motor contactor
- Programmable daily time clock in 30-minute increments
- 3-position switch (filtration)
- 2-position switch (spotlight)
- Transformer (50 W, 100 W, 300 W or 600 W) to match spotlight(s)
- Earth terminal block
- Option: sweep available
- Dimensions: 436 x 310 x 147 (mm)

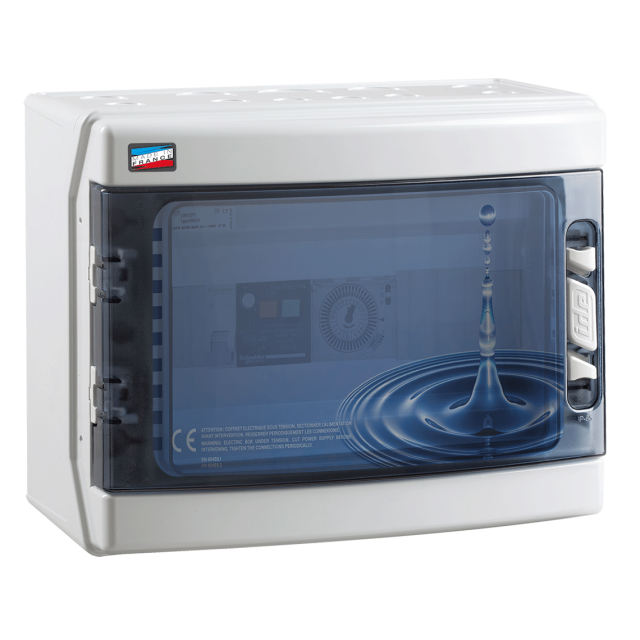

Klaar Eco
- Motor protection by magneto-thermal circuit breaker (2.5/4 – 4/6.3 – 6.3/10)
- Motor contactor
- Programmable daily time clock in 30-minute increments
- 3-position switch (filtration)
- 2-position switch (spotlight)
- Transformer (50 W, 100 W) to match spotlight(s)
- Earth terminal block
- Dimensions: 246 x 310 x 147 (mm)
