Pinnacle Ozone Solutions
Pinnacle ozone solutions feature advanced technology and innovative design, ensuring optimal performance and reliability.
User-friendly interfaces and robust construction make the systems easy to operate and dependable. These complete systems are designed for both small- and large-scale projects and can produce up to 13.68 kg/h of ozone per generator.
Benefits +
- Modular ozone cells
- Built-in redundancy
- High-frequency power supply with integrated controls
- Comprehensive instrumentation for ozone treatment
- UL-508 certified enclosure with safe operation
- Ultra-compact design
Technical data

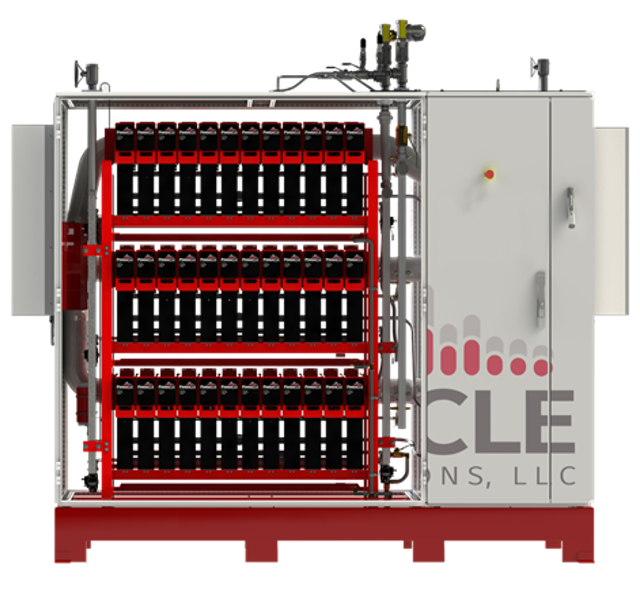

| Model | Peak 5X | Summit 10X | Zenith 20X | Zenith 30X | Apex 36X |
| Max. LOX ozone production at 10% concentration | 1.9 g/h | 3.8 g/h | 7.6 g/h | 11.4 g/h | 13.68 g/h |
| Max. V-PSA ozone production at 10% concentration | 1.6 g/h | 3.2 g/h | 6.4 g/h | 9.6 g/h | 11.52 g/h |
| Power supply | 208-230V 3ph 50-60Hz | 208-230V 3ph 50-60Hz | 208-230V 3ph 50-60Hz | 208-230V 3ph 50-60Hz | 208-230V 3ph 50-60Hz |
| Ozone generator dimensions (L × H × W) | 1067 x 2107 x 933 mm | 1895 x 2369 x 800 mm | 2820 x 2388 x 864 mm | 2820 x 2388 x 864 mm | 2820 x 2616 x 800 mm |
| Ozone generator weight | 545 kg | 771 kg | 1588 kg | 2090 kg | 2313 kg |
