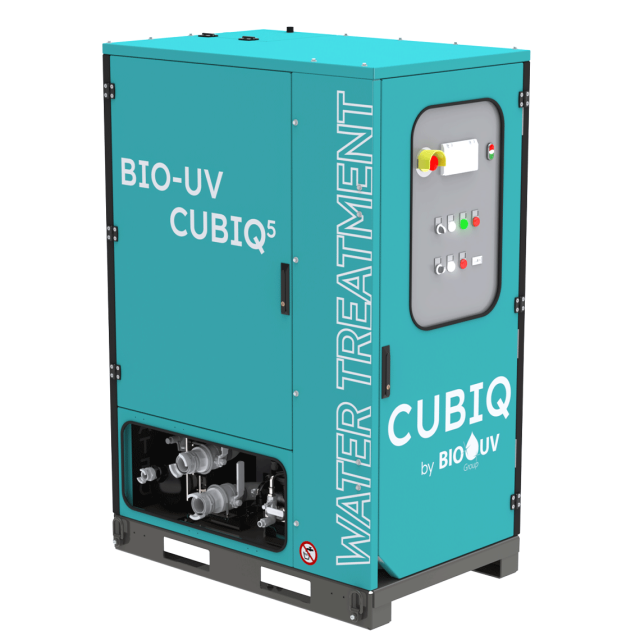

CUBIQ
A plug-and-play range for the reuse of treated wastewater.
The CUBIQ has been specially designed for the treatment and disinfection of purified wastewater. This compact, mobile, containerised solution is equipped with a filter, a pump, and a UV reactor. Once treated, the water can be reused for urban purposes, such as watering plants, filling road sweepers and hydro-cleaning trucks, and cleaning equipment directly at the WWTP. This reserves drinking water for the local population.
Benefits +
- Compact skid, with a footprint of just 1 m2
- Water quality delivered according to the European Regulation (UE 2020/741) for reclaimed water
- Environmentally-friendly treatment, chemical-free
- Reduced OPEX
Operation
CUBIQ provides high-quality treated water on demand to professionals and local authorities, catering to their specific needs. The system is connected to the outlet of a wastewater treatment plant (WWTP).
This reclaimed water can either be used directly or stored in a tank.

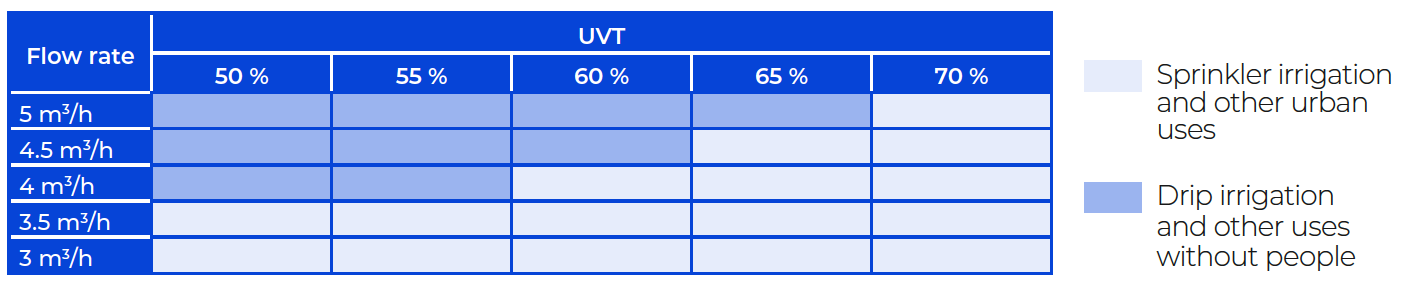

Performance matrix
Options
- Training, installation, commissioning, and annual maintenance contracts are available
- System available for sale or for hire
Technical data
| Model | Max. flow rate | Lamp power | SKID dimensions |
| CUBIQ5 | 5 m3/h | 4 x 170 W | W1182 x H775 x D1735 mm |
